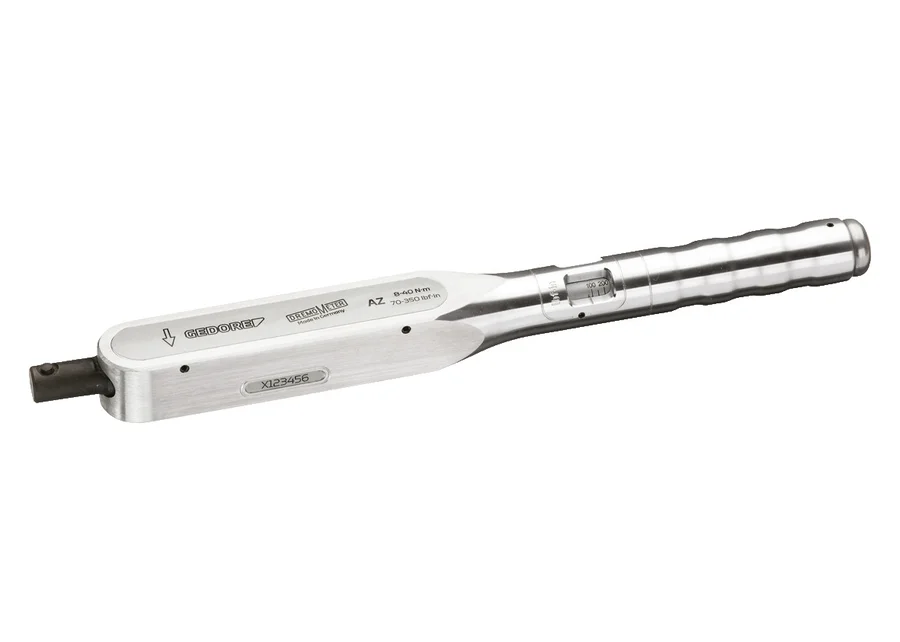

8460-01 Torque wrench DREMOMETER AZ 8-40 Nm
No.
8460-01
Code
7703610
EAN
4002805846018
- Torque range: 8-40 Nm (70-350 lbf·in)
- Accuracy: ±3 %
- Release mechanism: Short-travel release
- Drive type: Drive pin
- Function: Triggering
- Tool holder: Plug-in tools
- Torque wrench type: AZ
Technical Data
- Torque (min.) [Nm]
- 8 Nm
- Torque (max.) [Nm]
- 40 Nm
- Material
- Aluminium alloy
- Total length [mm]
- 366 mm
- Total width [mm]
- 35 mm
- Total height [mm]
- 30 mm
- Nominal length [mm]
- 366 mm
- Nominal width [mm]
- 35 mm
- Nominal height [mm]
- 30 mm
- Weight [kg]
- 1,38 kg
- Width of head 1 [mm]
- 35,0 mm
- Head height 1 [mm]
- 30 mm
- Torque (min.) [lbf·in]
- 350 lbf·in
- Torque (max.) [lbf·in]
- 70 lbf·in
- Torque range (min./max.) [lbf·ft]
- -
- Torque range (min./max.) [lbf·in]
- 70 lbf·in - 350 lbf·in
- Drive type/drive
- Drive pin
- Torque wrench function
- triggering
- Torque range (min./max.) [Nm]
- 8 Nm - 40 Nm
- Precision +/-
- +/- 3 %
- Tightening direction
- Left and right
- Trigger mechanism
- Short path triggering
- Graduation
- 5
- Torque wrench tool holder
- attachable tools
- Scale type
- Dual
- Scale division [Nm]
- 5 Nm
- Graduation [lbf·in]
- 50 lbf·in
- Torque wrench type
- AZ
- Calibration length
- 300 mm
- Test certificate
- DIN EN ISO 6789-02:2017
- Depth gauge [metric]
- 32,0 mm
- Lever length handle side [mm]
- 328 mm
- Lever length drive side [mm]
- 38 mm
- Receptacle width [mm]
- 16 mm
- Distance between housing and centre of drive [mm]
- 16 mm
- Safety
- Locking pin
