KL-0041-452 C Wheel Bearing Installation Tool, Ø 92mm
No.
KL-0041-452 C
Code
3445828
EAN
4046459195207
- Load capacity: 17 t
- Drive type: Hydraulic
- For outer diameter (bearing): 92 mm
- Bolt circle diameter: 5 × 108 mm, 5 × 112 mm
- required accessories: Hydraulic drive (17 t):, KL-0041-3800 A wheel hub puller, KL-0214-2202 – spacer ring, KL-0039-1920-1 A – pull spindle M20, KL-0039-1002 mounting adapter, nut, KL-0039-1003 mounting adapter, cylinder, KL-0039-2120-2 – quick-clamping nut M20, KL-0040-2500 – hydraulic cylinder 17t, KL-0215-35 M25 – hand pump 17t
- Set contents: 7-piece
Technical Data
- Weight [kg]
- 7,8 kg
- suitable for vehicle model
- Citroen C4 Grand Spacetourer (3A / 3E) Citroen C4 Spacetourer (3D) Citroen Jumpy / Dispatch III (V) Fiat Scudo III (506 / 507) Fiat Ulysse III (366 / 367) Opel Vivaro C (K0) Opel Zafira D / Life (K0) Peugeot Expert III (V) Peugeot Traveller (V) Toyota ProAce II (MDZ) Toyota ProAce Verso (MPY)
- Required accessories
- Hydraulic drive (17 t): KL-0041-3800 A - Wheel hub extractor KL-0214-2202 – Spacer ring KL-0039-1920-1 A – Pull spindle M20 KL-0039-1002 - Retaining adaptor, nut KL-0039-1003 - Retaining adaptor, cylinder KL-0039-2120-2 – Quick-clamping nut M20 KL-0040-2500 – Hydraulic cylinder 17t KL-0215-35 M25 – Hand pump 17t
- Note
- To remove the wheel hub bearing unit, the universal wheel hub puller KL-0041-380 ... is required.
- Suitability
- Citroen Opel Peugeot Toyota
- Manufacturer spare part number

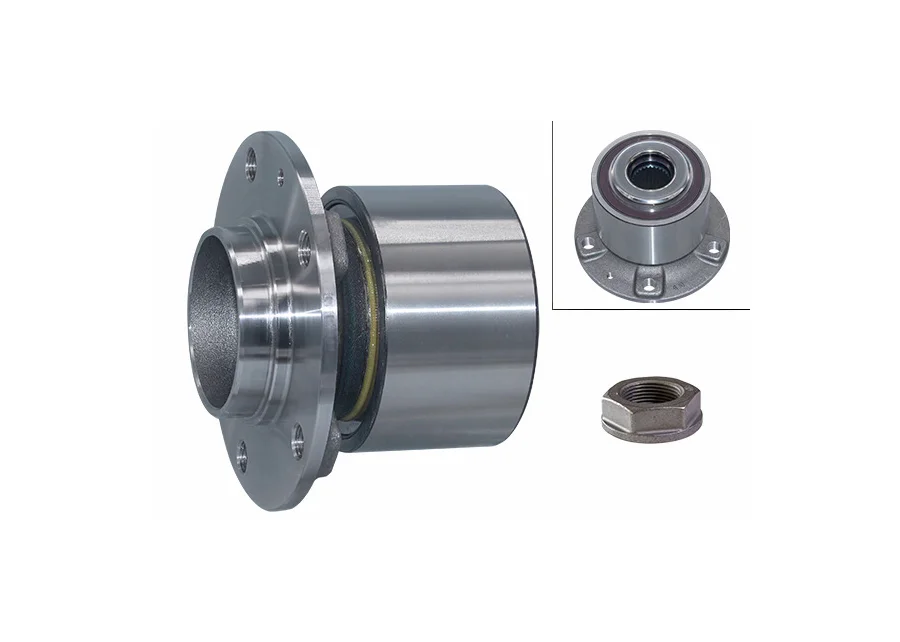

- PSA: 98 190 747 80 Toyota: SU001-A6528   SNR/NTN: R159.70
- Bill of materials (text)

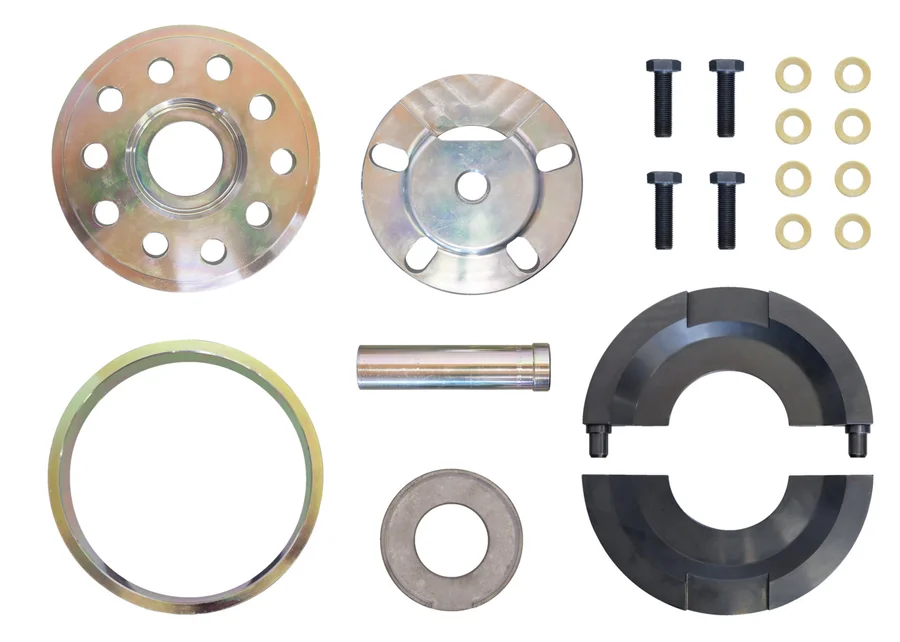

- 1x KL-0041-4500 B - Clamping jaw pair, Ø 85/92mm 1x KL-0041-4607 - Housing 1x KL-0041-4608 D - Cover 1x KL-0039-1289 - Thrust ring, Ø 89mm 1x KL-0039-1802 - Centring sleeve, long, Ø 27.4mm 1x KL-0041-4521 - Puller plate with screw
- for outer Ø (bearing) [mm]
- 92 mm
- Load (max.) [t]
- 17 t
- Drive type
- hydraulic
- Pitch circle diameter [mm]
- 5 x 108 mm 5 x 112 mm
- for outer Ø (bearing) [mm]
- 92 mm
- Load (max.) [t]
- 17 t
- Drive type
- hydraulic
- Pitch circle diameter [mm]
- 5 x 108 mm 5 x 112 mm
