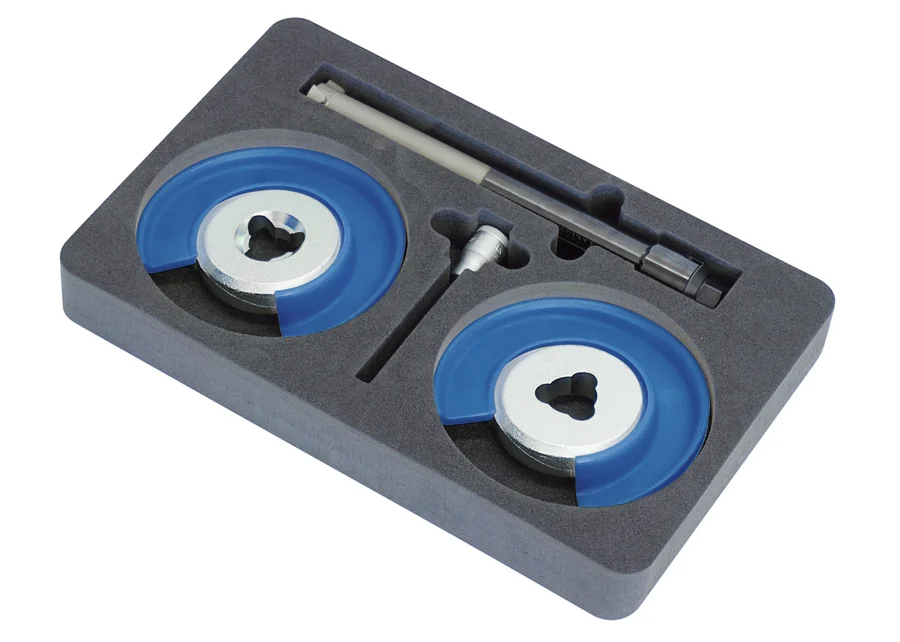

KL-0033-10 E Z Internal spring compressor compact, size 2A and 0A
No.
KL-0033-10 E Z
Code
3421198
EAN
4046459181613
- Working stroke: 100 mm
- Load capacity: 30,000 N
- Hexagon drive: 19 mm
- Outer dia., clamping cylinder: 34 mm
- Spring dia., outer (max.): 130 mm
- Spring dia., inner (min.): 80 mm
- Clamping range: 116-216 mm
- Overall width: 231 mm
- Overall height: 46 mm
- Overall length: 370 mm
Technical Data
- Drive connector hexagon [metric]
- 19 mm
- Clamping width (min.)
- 116 mm
- Clamping width (max.)
- 216 mm
- Total length [mm]
- 370 mm
- Total width [mm]
- 231 mm
- Total height [mm]
- 46 mm
- Weight [kg]
- 5,7 kg
- suitable for vehicle model
- Audi A4 B8 (8K) Audi A5 (8T / 8F) Audi A6 C7 (4G) Audi A7 (4G) Audi Q5 (8R) BMW 1er (E81 / E82 / E87 / E88) BMW 3er (E90 / E91 / E92 / E93) Ford Focus II (DA / DB / DH / DP / DS) Mercedes C-Klasse III (C/S/W204) Mercedes CLK II (A/C209) Mercedes CLS I (C219) Mercedes E-Klasse III (S/W211) Mercedes E-Klasse IV (A/C207 / S/W212) Mercedes GLA I (X156) Mercedes GLK (X204) VW Passat B8 (3G / CB)
- suitable for axle type
- Querlenkerachse Raumlenkerachse
- Suitability
- universal Audi BMW Ford Mercedes Porsche Seat Skoda VW
- Manufacturer spare part number
- Audi: 8K0 511 115 DE; 8K0 511 115 DG; 8K0 511 115 DH; 8K0 511 115 DK; 8K0 511 115 DL; 8K0 511 115 GS; 8K0 511 115 GR; 8K0 511 115 GT; 8K0 511 115 HA; 8K0 511 115 HC; 8R0 511 115 AL; 8R0 511 115 AM; 8R0 511 115 AN; 8R0 511 115 AP; 8R0 511 115 CD; 8R0 511 115 CE BMW: 33 53 6 767 342; 33 53 6 767 344; 33 53 6 767 343; 33 53 6 767 345; 33 53 6 767 347; 33 53 6 767 346; 33 53 6 767 348; 33 53 6 767 349; 33 53 6 768 250; 33 53 6 768 251; 33 53 6 768 252; 33 53 6 768 253; 33 53 6 772 442; 33 53 6 773 596; 33 53 6 773 597; 33 53 6 773 598; 33 53 6 773 599; 33 53 6 776 932; 33 53 6 764 391; 33 53 6 764 392; 33 53 6 764 393; 33 53 6 772 439; 33 53 6 772 440; 33 53 6 767 336; 33 53 6 767 337; 33 53 6 767 338; 33 53 6 767 339; 33 53 6 767 340 Ford: 1423077; 6M5Y-5560-BAA; 1318104; 1335393; 4M51-5560-AEB; 4M51-5560-AFB; 1335392; 1318103; 1445948; 1431811; 1406518; 4M51 5B669 BEE; 1381919 Mercedes: A 211 324 05 04; A 211 324 07 04; A 211 324 06 04; A 211 324 02 04; A 211 324 08 04; A 212 324 01 04; A 212 324 04 04; A 204 324 05 04; A 204 324 03 04; A 204 324 04 04; A 204 324 06 04; A 204 324 07 04 VW: 3Q0 511 115 AH; 3Q0 511 115 AJ; 3Q0 511 115 AK; 3Q0 511 115 M

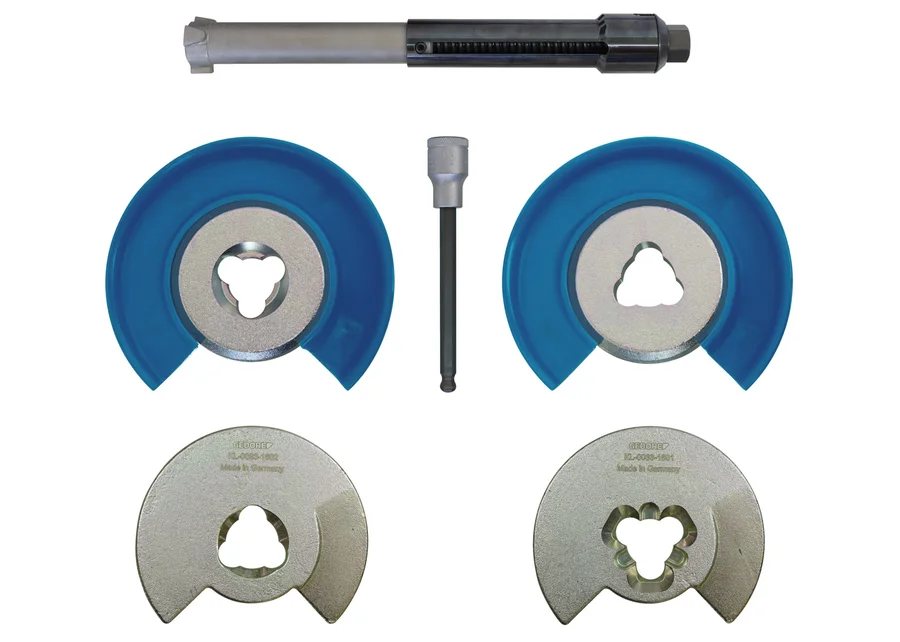

- Bill of materials (text)
- 1x KL-0033-100 A - clamping cylinder 1x KL-0033-1101 - Pressure plate with lock 1x KL-0033-1102 - Pressure plate with shaft profile 1x KL-0033-16 - Pair of pressure plates, Size 0A 1x IN 19 LK 8-140 - screwdriver insert 1x KL-0033-1090-1 - foam insert
- Spring Ø, outer (max.) [mm]
- 130 mm
- Spring Ø, inner (min.) [mm]
- 80 mm
- Distance to work
- 100 mm
- Load (max.) [N]
- 30.000 N
- Drive hexagon [mm]
- 8 mm
- Outer Ø, clamping cylinder [mm]
- 34 mm
- Breaking point
- 120.000 N
