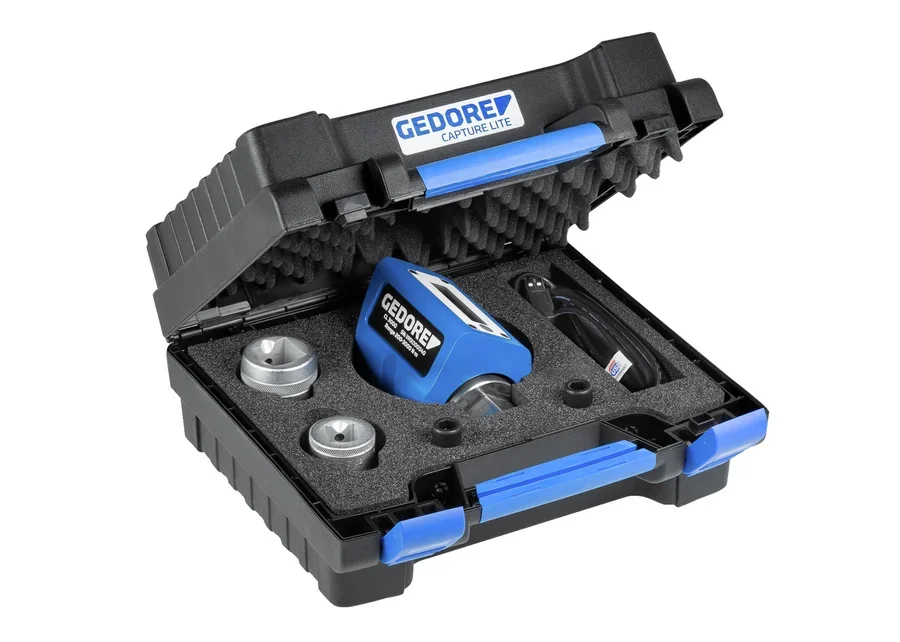

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 12

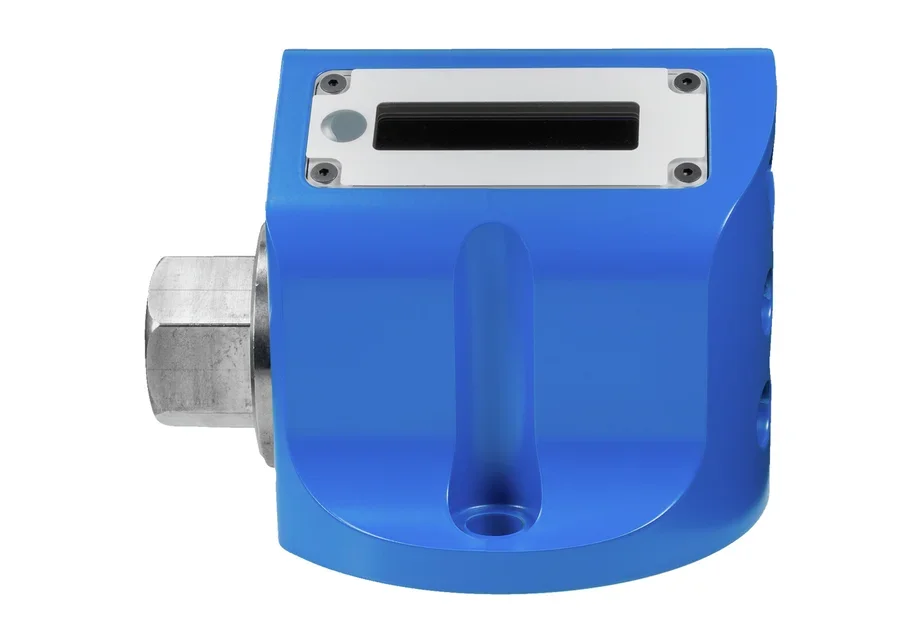

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 13

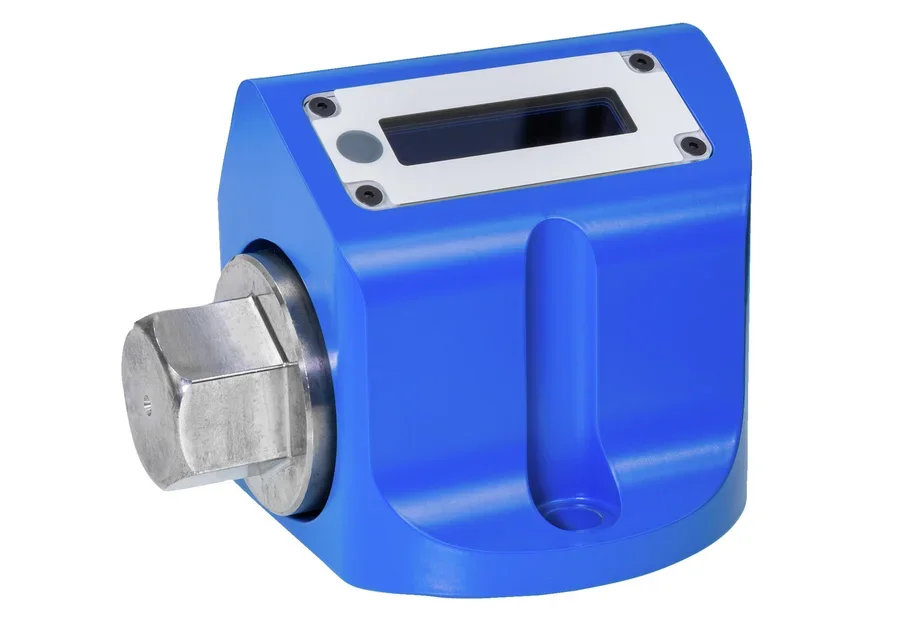

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, catalogue image no. 4

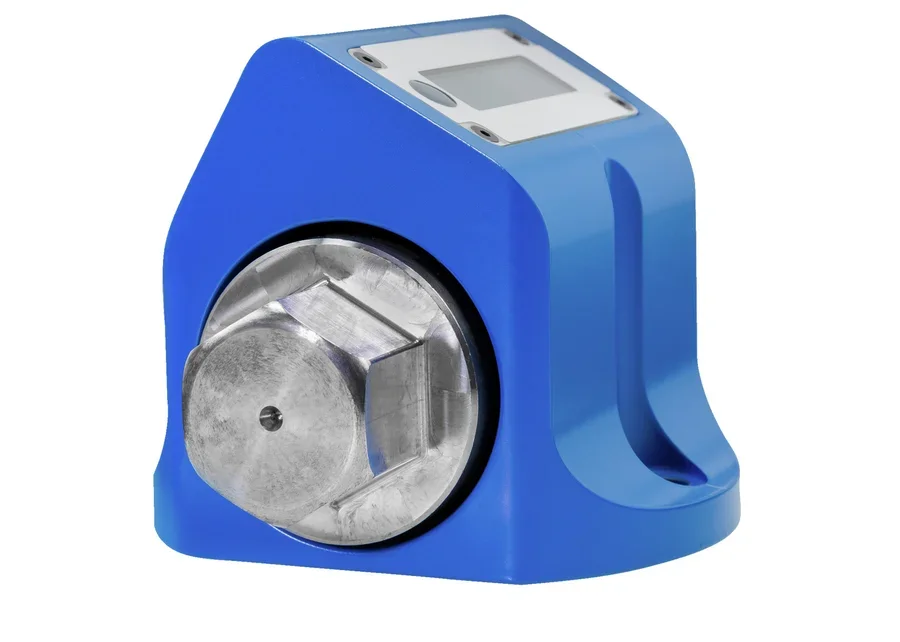

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 14
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, catalogue image no. 3
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, application image
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 12
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 13
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, catalogue image no. 4
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 14

CL 3000 Electronic test device Capture Lite 200-3000Nm

No. CL 3000
Code 3420523
EAN 0616050810140
Variant
  • Maximum torque: 3000 Nm
  • Minimum torque: 200 Nm
  • Hex drive: 1" (36 mm)
  • Adapter: 1" square drive, 3/4" square drive
  • Torque measurement accuracy: ± 1 % tolerance at all readings
Find a dealer

Technical Data

Torque (min.) [Nm]
200 Nm
Torque (max.) [Nm]
3000 Nm
Drive connector square [inch]
1"
Drive connector hexagon [metric]
36 mm
Power source
Cable
Surface
blue anodized
Material
Aluminium (housing)
Total length [mm]
140 mm
Total width [mm]
120 mm
Total height [mm]
100 mm
Weight [kg]
0,001 kg
Bill of materials (text)
Plastic case USB connection cable Evaluation software Adapter (1" square, 3/4" square) Mounting screws User manual Test certificate
Torque (min.) [lbf·ft]
148 lbf·ft
Torque (max.) [lbf·ft]
2212 lbf·ft
Torque (min.) [lbf·in]
26552 lbf·in
Torque (max.) [lbf·in]
1770 lbf·in
Torque range (min./max.) [lbf·ft]
148 lbf·ft - 2212 lbf·ft
Torque range (min./max.) [Nm]
200 Nm - 3000 Nm
Measurement accuracy
± 1% tolerance for all readings
Mounting / Installation
2x M12, Tightening torque 47 N·m
Operating direction
right
Interface
USB
Graphic display
Yes
Resolution
0,1
Adaptor
1" square drive 3/4" square drive
Scope of delivery
Kunststoffkoffer, USB-Verbindungskabel, Adapter (modellabhängig), Montageschrauben, Bedienungsanleitung, Prüfzertifikat
