KL-0250-43 KB Drill-Out Tool Kit for Strut Bolts, VW-Audi
No.
KL-0250-43 KB
Code
3418820
EAN
4046459180807
- Drill diameter: 7 mm
- Drill diameter 2: 9.5 mm
- Overall width: 304 mm
- Overall height: 134 mm
- Overall length: 391 mm

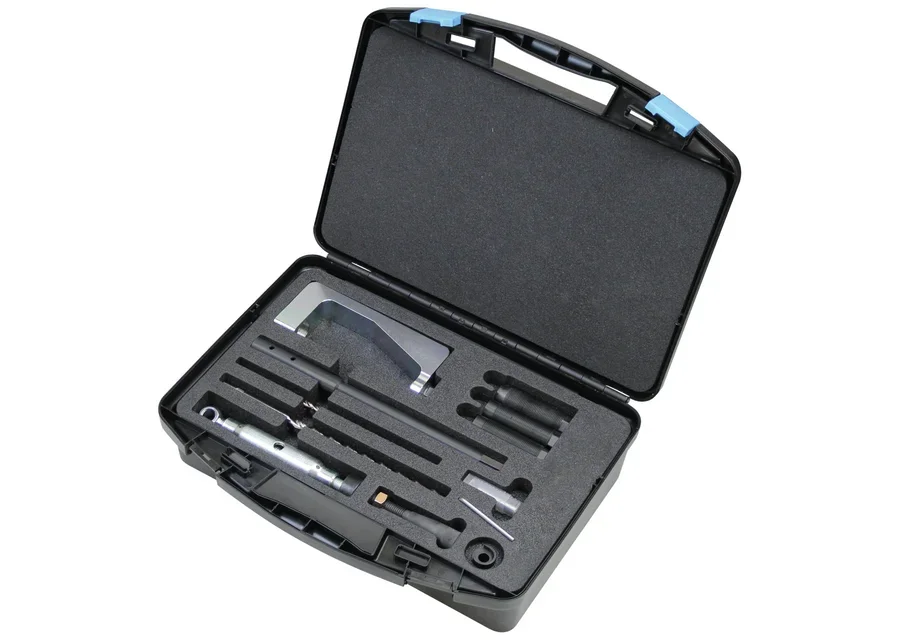

- Set contents: 13-piece
Technical Data
- Storage
- Case
- Total length [mm]
- 391 mm
- Total width [mm]
- 304 mm
- Total height [mm]
- 134 mm
- Weight [kg]
- 4 kg
- suitable for vehicle model
- Audi A4 B5 (8D) Audi A4 B6 (8E / 8H) Audi A4 B7 (8E / 8H) Audi A4 B8 (8K) Audi A4 B9 (8W) Audi A5 (8T / 8F) Audi A5 (F5) Audi A6 C5 (4B) Audi A6 C6 (4F) Audi A6 C7 (4G) Audi A7 (4K) Audi A7 (4G) Audi A8 D2 (4D) Audi A8 D3 (4E) Audi A8 D4 (4H) Audi A8 D5 (4N) Audi Q5 (8R) Seat Exeo (3R) Skoda Superb I (3U) VW Passat B5 (3B) VW Phaeton (3D)
- Suitability
- Audi Seat Skoda VW
- Manufacturer spare part number
- VW-Audi: 8D0 407 257 AL; 8D0 407 257 AC; 8D0 407 257 S; 8D0 407 257 P; 8D0 407 257 M; 8D0 407 258 AL; 8D0 407 258 AC; 8D0 407 258 S; 8D0 407 258 P; 8D0 407 258 M; 4Z7 407 505; 4Z7 407 505 A; 8D0 407 505 B; 8D0 407 505 F; 8D0 407 505 H; 8D0 407 505 K; 8E0 407 505 A; 4Z7 407 506; 4Z7 407 506 A; 8D0 407 506 B; 8D0 407 506 F; 8D0 407 506 H; 8D0 407 506 K; 8E0 407 506 A; 4D0 407 509 B; 4D0 407 509 D; 4D0 407 509 F; 4D0 407 509 G; 4D0 407 509 H; 4D0 407 509 J; 4D0 407 509 K; 8D0 407 509 C; 8D0 407 509 E; 8D0 407 509 G; 8E0 407 509 A; 4D0 407 510 B4; D0 407 510 D; 4D0 407 510 F; 4D0 407 510 G; 4D0 407 510 H; 4D0 407 510 J; 4D0 407 510 K; 8D0 407 510 C; 8D0 407 510 E; 8E0 407 510 A; 8D0 407 258 AM; 8D0 407 258 AE; 8D0 407 258 AB; 8D0 407 258 T; 8D0 407 258 R; 8D0 407 258 N; 8D0 407 257 AM; 8D0 407 257 AE; 8D0 407 257 AB; 8D0 407 257 T; 8D0 407 257 R; 8D0 407 253 C; 8D0 407 253 A; 8D0 407 254 C; 8D0 407 258 A; 8D0 407 253 B; 8D0 407 253; 8D0 407 254 B; 8D0 407 254; 8E0 407 253 E; 8E0 407 257 C; 8E0 407 253; 8E0 407 253 C; 8E0 407 253 D; 8E0 407 253 F; 8E0 407 253 H; 8E0 407 257 H; 8E0 407 254 E; 8E0 407 258 C; 8E0 407 254; 8E0 407 254 C; 8E0 407 254 H; 8E0 407 254 D; 8E0 407 254 F; 8E0 407 258 H; 8K0 407 253 AB; 8K0 407 254 AB; 8K0 407 253 R; 8K0 407 254 R; 8K0 407 253 T; 8K0 407 254 T; 8K0 407 253 AA; 8K0 407 253 S; 8K0 407 254 AA; 8K0 407 254 S; 4G0 407 253 A; 4GD 407 253 D; 4GD 407 253 A; 4GD 407 257 B; 4F0 407 253 E; 4F0 407 253 G; 4F0 407 254 E; 4F0 407 254 G; 4F0 407 253 F; 4F0 407 253 H; 4F0 407 254 F; 4F0 407 254 H; 4E0 407 510 B; 4E0 407 510 E; 4E0 407 509 B; 4E0 407 509 E; 4E0 407 505 B; 4E0 407 505 E; 4E0 407 506 B; 4E0 407 506 E; 4GD 407 505 A; 8K0 407 505 A; 8K0 407 505 F; 8K0 407 505 N; 8KD 407 505; 8KD 407 505 A; 4GD 407 506 A; 8K0 407 506 A; 8K0 407 506 F; 8K0 407 506 N; 8KD 407 506; 8KD 407 506 A; 4GD 407 509 A; 8K0 407 509 A; 8K0 407 509 F; 8K0 407 509 N; 8KD 407 509; 8KD 407 509 A; 4GD 407 510 A; 8K0 407 510 A; 8K0 407 510 F; 8K0 407 510 N; 8KD 407 510; 8KD 407 510 A; 8K0 407 505 B; 8K0 407 505 J; 8K0 407 505 M; 8K0 407 505 P; 8K0 407 505 R; 8K0 407 506 B; 8K0 407 506 J; 8K0 407 506 M; 8K0 407 506 P; 8K0 407 506 R; 8K0 407 509 B; 8K0 407 509 J; 8K0 407 509 M; 8K0 407 509 P; 8K0 407 509 R; 8K0 407 510 B; 8K0 407 510 J; 8K0 407 510 M; 8K0 407 510 P; 8K0 407 510 R; 4H0 407 505 D; 4H0 407 505 F; 4H0 407 505 E; 4H0 407 506 D; 4H0 407 506 F; 4H0 407 506 E; 4H0 407 509 A; 4H0 407 509 D; 4H0 407 509 F; 4H0 407 509 E; 4H0 407 510 A; 4H0 407 510 D; 4H0 407 510 F; 4H0 407 510 E; 4N0 407 505; 80D 407 505; 4M0 407 505 C; 80A 407 505 A; 80A 407 505; 4M0 407 505 B; 80A 407 506 A; 80D 407 506; 4M0 407 506 C; 4N0 407 506; 80A 407 506; 4M0 407 506 B

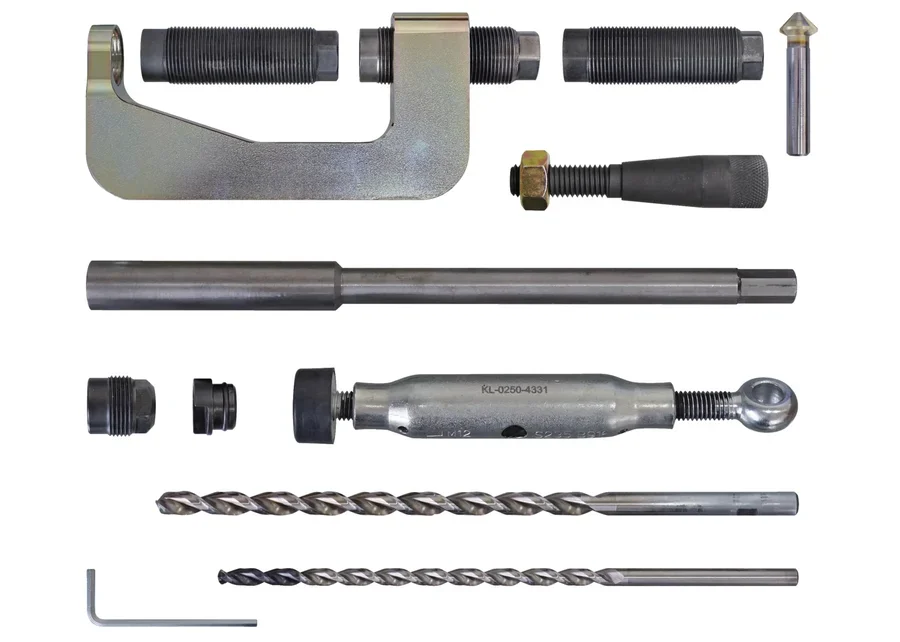

- Bill of materials (text)
- 1x KL-0250-4311 B - Basic tool 1x KL-0250-4313 A - Boring sleeve 7 mm dia. 1x KL-0250-4314 A - Boring sleeve 7 mm dia. with recess 1x KL-0250-4321 A - Extension with grub screws 1x KL-0250-4322 - Twist drill 9.5x175x250 mm dia. with clamping surface 1x KL-0250-4323 - Twist drill 7x155x225 mm dia. with clamping surface 1x KL-0250-4324 - Countersink drill 12.4 mm dia. 1x KL-0250-433 - Clamping device 1x KL-0250-4341 - Supplement tie rod end 1x 42 3 - Hexagon L key 3 mm 1x KL-0250-4390-2 B - Foam insert 1x KL-4990-9374 - Plastic case
- Drill diameter
- 7 mm
- Drill diameter 2
- 9,5 mm
