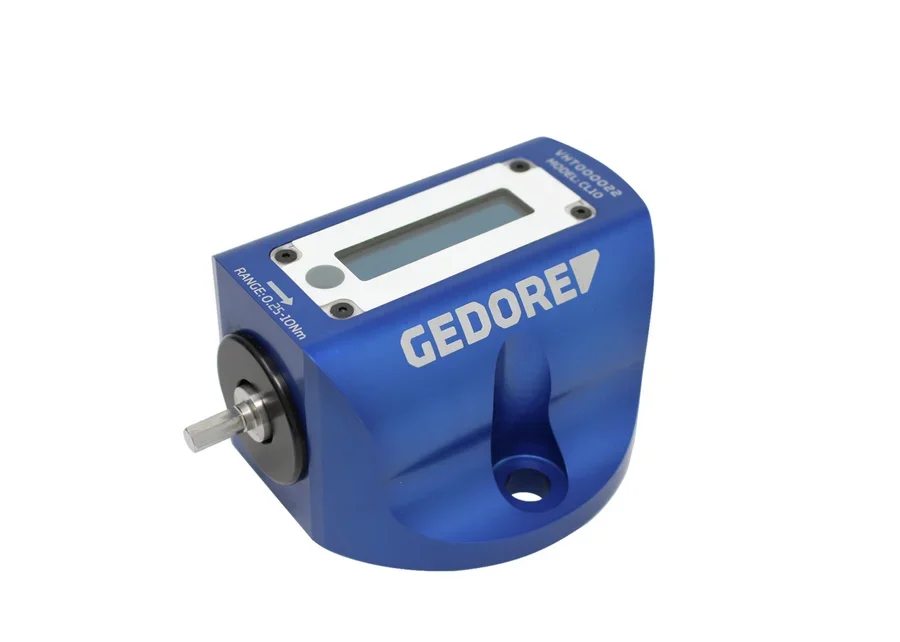

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, catalogue image no. 1

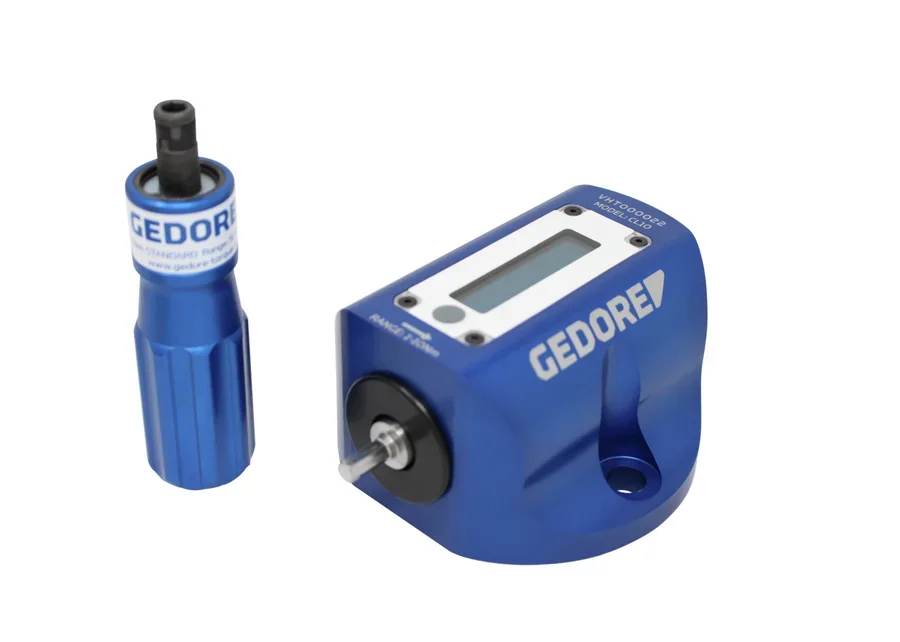

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, application image

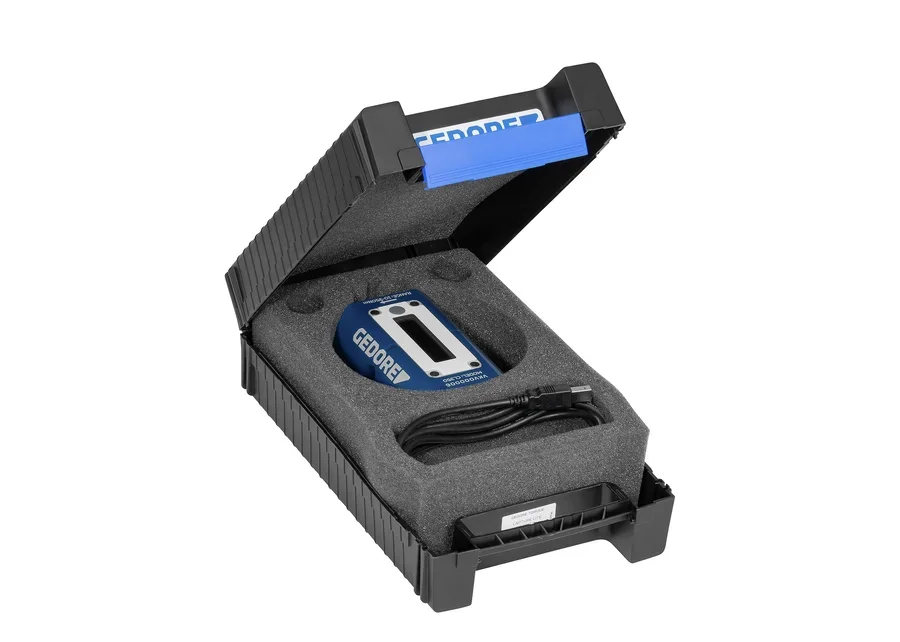

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 8

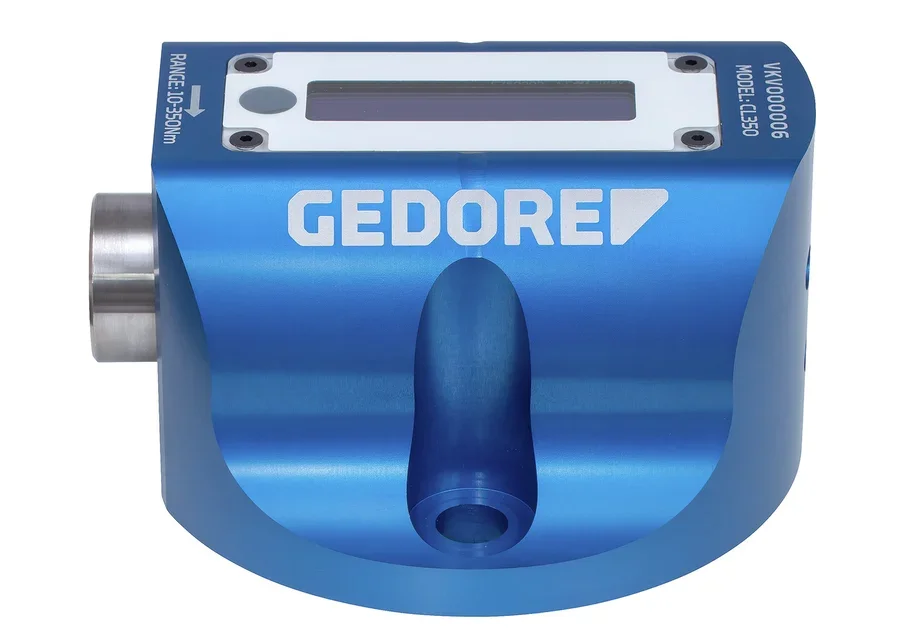

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 10

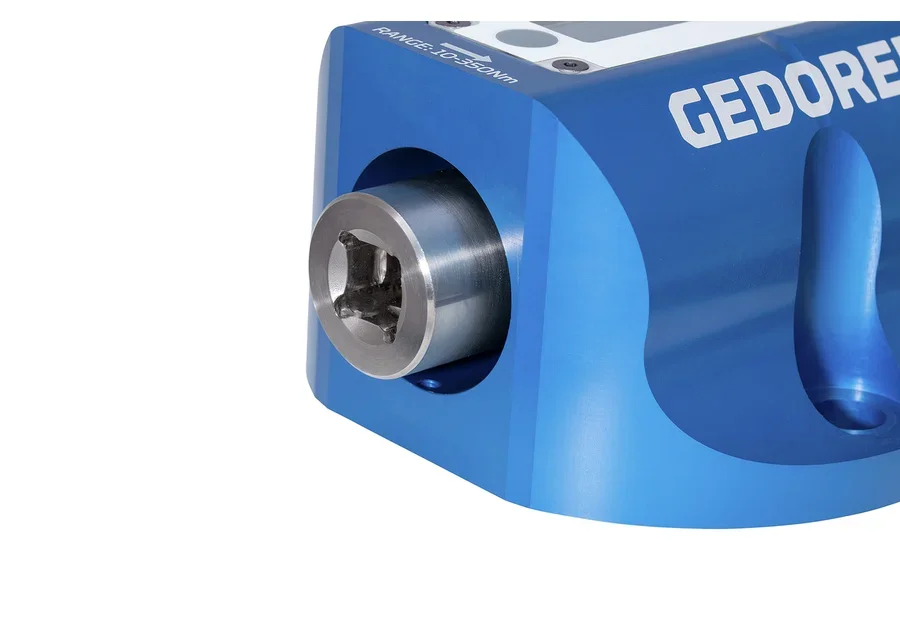

GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 11
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, catalogue image no. 3
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, catalogue image no. 1
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, application image
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 8
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 10
GEDORE Capture Lite electronic tester 0.02-3000 Nm / 0.015-2210 lbf·ft, product image no. 11

CL 1 Electronic tester Capture Lite 0.02-1 Nm

No. CL 1
Code 3297888
EAN 611702896916
Variant
  • Maximum torque: 1 Nm
  • Minimum torque: 0,02 Nm
  • Hex drive: 1/4" (6,3 mm)
  • Torque measurement accuracy: ± 1 % tolerance at all readings
Find a dealer

Technical Data

Torque (min.) [Nm]
0,02 Nm
Torque (max.) [Nm]
1 Nm
Drive connector hexagon [inch]
1/4"
Drive connector hexagon [metric]
6,3 mm
Power source
Cable
Surface
blue anodized
Material
Aluminium (housing)
Total length [mm]
135 mm
Total width [mm]
120 mm
Total height [mm]
70 mm
Nominal length [mm]
135 mm
Nominal width [mm]
120 mm
Nominal height [mm]
70 mm
Weight [kg]
1,42 kg
Bill of materials (text)
Plastic case USB connection cable Evaluation software Mounting screws User manual Test certificate
Torque (min.) [lbf·ft]
0,02 lbf·ft
Torque (max.) [lbf·ft]
0,74 lbf·ft
Torque (min.) [lbf·in]
8,8 lbf·in
Torque (max.) [lbf·in]
0,18 lbf·in
Torque range (min./max.) [lbf·ft]
0,02 lbf·ft - 0,74 lbf·ft
Torque range (min./max.) [Nm]
0,02 Nm - 1 Nm
Measurement accuracy
± 1% tolerance for all readings
Mounting / Installation
2x M12, Tightening torque 47 N·m
Operating direction
right
Interface
USB
Resolution
0,0001
Scope of delivery
Kunststoffkoffer, USB-Verbindungskabel, Adapter (modellabhängig), Montageschrauben, Bedienungsanleitung, Prüfzertifikat
