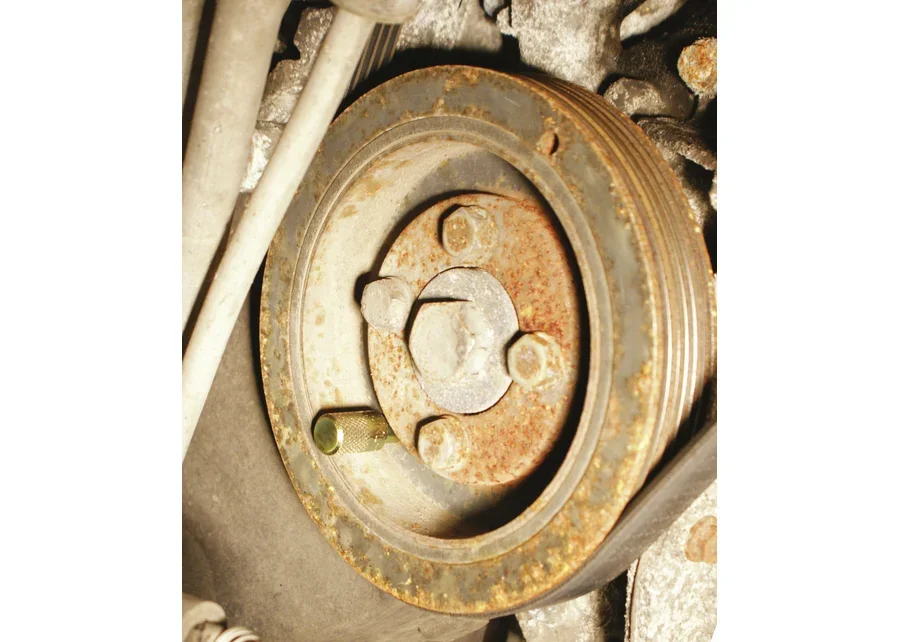

GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), application image no. 1

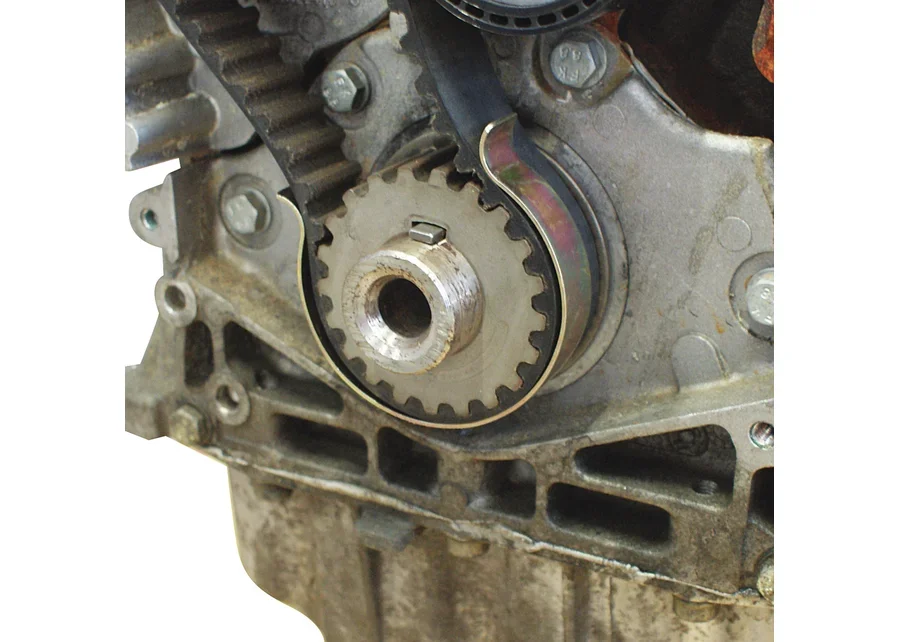

GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), application image no. 2

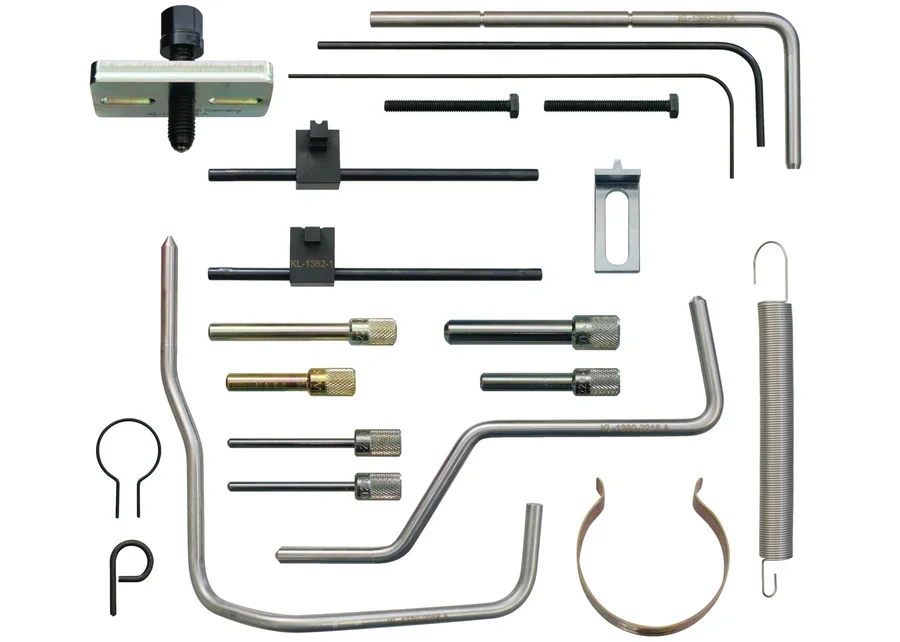

GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), detail image
GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), catalogue image
GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), application image no. 1
GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), application image no. 2
GEDORE Automotive locking tool set (PSA, Ford 1.4–2.2 HDI), detail image

KL-1380-26 Engine timing tool set (PSA, Ford 1.4-2.2 HDI)

No. KL-1380-26 KC
Code 2916371
EAN 4046459141990
  • Overall width: 295 mm
  • Overall height: 106 mm
  • Overall length: 395 mm
  • Set contents: 22 pieces
Find a dealer

Technical Data

Storage
Case
Total length [mm]
395 mm
Total width [mm]
295 mm
Total height [mm]
106 mm
Weight [kg]
2,2 kg
for motor type
Diesel
Suitable for motor
PSA 1.4 HDi PSA 1.6 HDi PSA 2.0 HDI PSA 2.2 HDI
suitable for vehicle model
Citroen Berlingo / First I (MF / GJK / GFK) Citroen Berlingo II (B9) Citroen Berlingo III (ER / EC / K9) Citroen C1 I (PM / PN) Citroen C2 (JM) Citroen C3 I (FC / FN) Citroen C3 II (SC) Citroen C3 III (SX) Citroen C3 Picasso (SH) Citroen C3 Pluriel (HB) Citroen C4 II (NC) Citroen C4 Picasso I (UD) Citroen C4 Picasso II Citroen C4 Grand Picasso I (UA) Citroen C4 Grand Picasso II (DA / DE) Citroen C4 Grand Spacetourer (3A / 3E) Citroen C4 Spacetourer (3D) Citroen C5 III (RD / RW) Citroen C5 Aircross (A) Citroen C6 (TD) Citroen C8 (EA / EB) Citroen C-Crosser (VU / VV) Citroen DS3 (SA / SB) Citroen DS4 / DS4 Crossback (NX) Citroen Jumper / Relay II (250) Citroen Jumpy / Dispatch III (V) Citroen Nemo Citroen Spacetourer (V) Citroen Xsara (N0 / N1 / N2) Citroen Xsara Picasso (N68) Fiat Ducato III (250) Ford C-Max / Focus C-Max I (DM2) Ford C-Max II / Grand C-Max (CB7 / CEU / DXA) Ford Fiesta Ford Focus Ford Fusion (JU) Ford Mondeo Lancia Phedra (179) Mazda 2 Mazda 3 Mazda 5 Opel Movano C (U9) Opel Vivaro C (K0) Opel Zafira D / Life (K0) Peugeot 107 (PM / PN) Peugeot 206 (2A / 2C / 2D / 2E / 2K / 2L / 2M) Peugeot 207 (WA / WC / WD / WK) Peugeot 307 (3A / 3B / 3C / 3E / 3H) Peugeot 308 I (4A / 4B / 4C / 4E / 4H) Peugeot 308 II (L3 / L4 / LB / LC / LH / LJ / LP / LR / LW / LX) Peugeot 406 (8B / 8C / 8E / 8F) Peugeot 407 (6C / 6D / 6E) Peugeot 508 I (8D / 8E) Peugeot 508 II (F3 / F4 / FB / FC / FH / FJ) Peugeot 807 (EB) Peugeot 1007 (KM) Peugeot 3008 I (0U) Peugeot 3008 II (M4 / MC / MJ / MR) Peugeot 4007 (VU / VV) Peugeot 5008 II (M4 / MC / MJ / MR) Peugeot Bipper (AA) Peugeot Boxer II (250) Peugeot Expert I (222 / 223 / 224) Peugeot Expert II (VF3A / VF3U / VF3X) Peugeot Expert III (V) Peugeot Partner III (K9) Peugeot RCZ Peugeot Traveller (V) Toyota ProAce II (MDZ) Toyota ProAce Verso (MPY) Volvo C30 (533) Volvo S40 II (544) Volvo S60 II (134) Volvo S80 II (124) Volvo V50 (545) Volvo V70 III (135)
Suitability
Citroen Fiat Ford Lancia Mazda Opel Peugeot PSA Toyota Volvo
OEM
0188-D|0188-F|0188-M|0188-X|0188-Y|0288-D|303-732|303-734|LDV104|303-735|1.870.827.000|0153N|1.860.863.000|5711-TA|7014-TN|7017-TR|7104-TJ|9044-T|9766.98|9767.34|18G 1632|2.000.023.200|0132-AJ1|0134-AF|0153-AL|0178-A
Motorcodes
Citroën/Fiat/Peugeot/PSA: 4HA, 4HB, 4HK, 4HL, 4HN, 4HP, 4HR, 4HS, 4HT, 4HW, 4HX, 4HY, 4HZ, 8HP, 8HR, 8HS, 8HT, 8HV, 8HW, 8HX, 8HZ, 9HF, 9HH, 9HJ, 9HL, 9HM, 9HN, 9HP, 9HR, 9HS, 9HT, 9HU, 9HV, 9HW, 9HX, 9HY, 9HZ, AHE, AHH, AHK, AHM, AHN, AHP, AHR, AHS, AHV, AHW, AHX, AHY, AHZ, BNF, DV4C, DV4TD, DV4TED, DV4TED4, DV6ATED4, DV6AUTED4, DV6BTED4, DV6BUTED4, DV6C, DV6D, DV6DTED, DV6DU, DV6ETED, DV6TED4, DV6TED4B, DV6TED4BU, DV6UC, DV6UTED4, DW10ATED, DW10ATED/L3, DW10ATED4, DW10ATED4/L4, DW10ATED4/L44H, DW10BTED, DW10BTED/L3, DW10BTED4, DW10C, DW10CB, DW10CTED4, DW10CTED4, DW10FC, DW10FCC, DW10FCD, DW10FD, DW10FDCU, DW10FDDU340, DW10FDDU370, DW10FE, DW10FUC, DW10FUD, DW10FUE, DW10JATED4, DW10UTD, DW10UTED4, DW12ATED, DW12ATED4/L4, DW12BTED4, DW12CTED4, DW12MTED4, DW12RUD, DW12RUE, DW12TED4, DW12TED4/L4, DW12UTED, EHS, EHT, EHY, EHZ, H02, RHA, RHC, RHD, RHE, RHF, RHG, RHH, RHJ, RHK, RHL, RHM, RHR, RHS, RHT, RHV, RHW, RHX, RHY, RHZ. Ford/Mazda: F6JA, F6JB, F6JC, F6JD, G8DA, G8DB, G8DD, GPDA, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MZ-CD 1.6 Y6, T1BA, T1BB, T1BC, TZJA, Y6. Toyota: 4WZ-FHV, 4WZ-FTV, DW10FC, DW10FDCU, DW10FE, DW10FEU. Volvo: D4162T, D4162T DRIVe, D4164T, D4164T DRIVe.
Bill of materials (text)
1x KL-1380-2215 A - Locking mandrel angled 1x KL-1380-2216 A - Locking mandrel angled 1x KL-1380-2219 A - Locking mandrel with a diameter of 7.9 mm 1x KL-1380-2220 A - Locking mandrel with a diameter of 7.9 mm 1x KL-1380-2228 A - Locking pin tensioning pulley 1x KL-1380-231 A - Blocking tool flywheel 1x KL-1380-233 A - Locking mandrel with a diameter of 7.7 mm, angled 1x KL-1380-234 A - Puller for crankshaft 1x KL-1380-237 A - Toothed belt holding clamp 1x KL-1380-2601 A - Locking tool crankshaft 1x KL-1380-2602 A - Locking tool crankshaft with a diameter of 2 mm 1x KL-1380-2603 - Locking mandrel with a diameter of 4 mm, angled 1x KL-1382-1 - Toothed belt wrench 1x KL-1382-2 - Toothed belt socket spanner 1x KL-0680-2201 A - Locking mandrel with a diameter of 11 mm 2x KL-0680-2202 A - Locking mandrel with a diameter of 4.5 mm 1x KL-0680-2203 B - Locking mandrel with a diameter of 8 mm 1x KL-1380-2690 A - Plastic case
