KL-0039-160 E Press/Support Sleeve Set, short, Ø 30-90mm
No.
KL-0039-160 E
Code
2840723
EAN
4046459135319
- Drive type: hydraulic, mechanical
- Outside dia., sleeve (max.): 90 mm
- Outside dia., sleeve (min.): 30 mm
- Diameter increment: 2 mm
- Inside dia., sleeve (max.): 82 mm
- Inside dia., sleeve (min.): 22 mm
- Overall width: 305 mm
- Overall height: 105 mm
- Overall length: 445 mm
- Universally suitable
Technical Data
- Storage

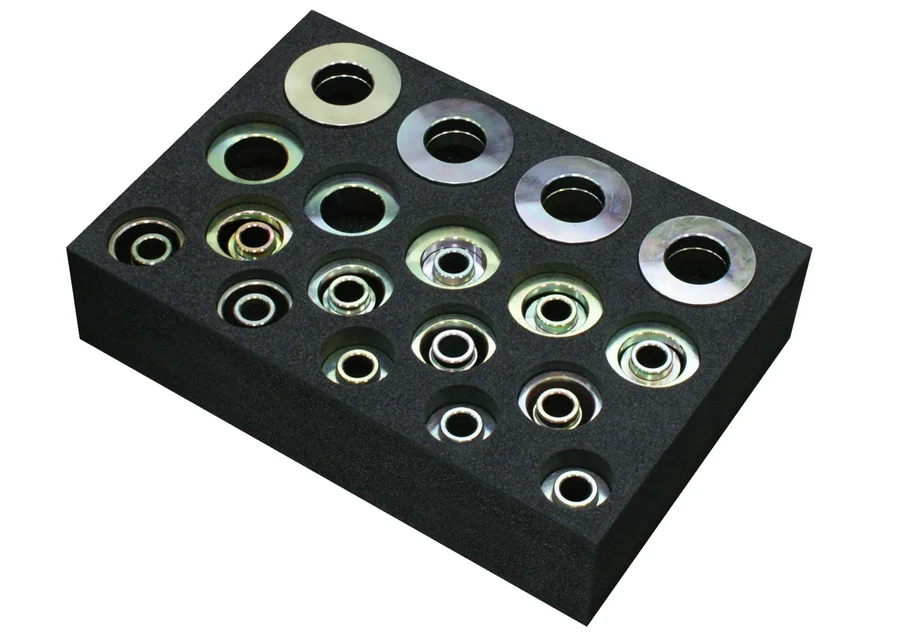

- Foam insert
- Total length [mm]
- 445 mm
- Total width [mm]
- 305 mm
- Total height [mm]
- 105 mm
- Weight [kg]
- 14 kg
- Version
- short
- Required accessories
- Hydraulic drive (17 t): KL-0215-35 M25 - Hydraulic pump KL-0040-2500 - Hydraulic cylinder 17 t KL-0039-1002 - Mounting adapter KL-0039-1003 - Mounting adapter KL-0039-21.. - Pull spindle (depending on the required spindle diameter) Press frame, hydraulic (optional): KL-0039-1140 - Press frame KL-0039-1920-1 A - Pull spindle KL-0041-5041 - Clamping nut Mechanical drive: KL-0039-1011 Mounting adapter KL-0039-1002 - Mounting adapter KL-0039-22.. - Pull spindle (depending on the required spindle diameter) Press frame, mechanical (optional): KL-0039-1140 - Press frame KL-0174-831 - Mechanical drive kit
- Suitability
- universal
- Bill of materials (text)

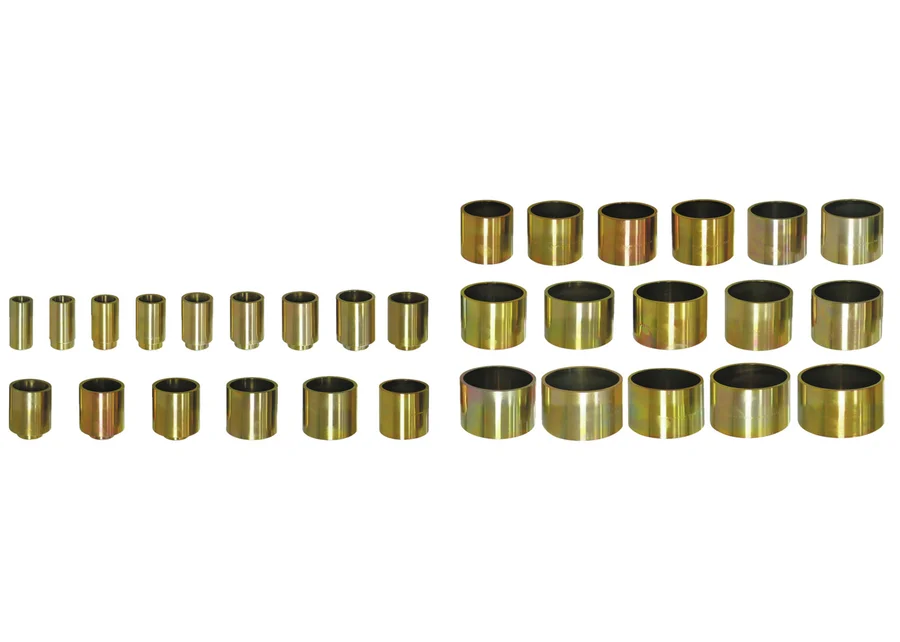

- 1x KL-0039-1630 - Pressure / support sleeve short 30 / 22 mm dia. 1x KL-0039-1632 - Pressure / support sleeve short 32 / 24 mm dia. 1x KL-0039-1634 - Pressure / support sleeve short 34 / 26 mm dia. 1x KL-0039-1636 - Pressure / support sleeve short 36 / 28 mm dia. 1x KL-0039-1638 - Pressure / support sleeve short 38 / 30 mm dia. 1x KL-0039-1640 - Pressure / support sleeve short 40 / 32 mm dia. 1x KL-0039-1642 - Pressure / support sleeve short 42 / 34 mm dia. 1x KL-0039-1644 - Pressure / support sleeve short 44 / 36 mm dia. 1x KL-0039-1646 - Pressure / support sleeve short 46 / 38 mm dia. 1x KL-0039-1648 - Pressure / support sleeve short 48 / 40 mm dia. 1x KL-0039-1650 - Pressure / support sleeve short 50 / 42 mm dia. 1x KL-0039-1652 - Pressure / support sleeve short 52 / 44 mm dia. 1x KL-0039-1654 - Pressure / support sleeve short 54 / 46 mm dia. 1x KL-0039-1656 - Pressure / support sleeve short 56 / 48 mm dia. 1x KL-0039-1658 - Pressure / support sleeve short 58 / 50 mm dia. 1x KL-0039-1660 - Pressure / support sleeve short 60 / 52 mm dia. 1x KL-0039-1662 - Pressure / support sleeve short 62 / 54 mm dia. 1x KL-0039-1664 - Pressure / support sleeve short 64 / 56 mm dia. 1x KL-0039-1666 - Pressure / support sleeve short 66 / 58 mm dia. 1x KL-0039-1668 - Pressure / support sleeve short 68 / 60 mm dia. 1x KL-0039-1670 - Pressure / support sleeve short 70 / 62 mm dia. 1x KL-0039-1672 - Pressure / support sleeve short 72 / 64 mm dia. 1x KL-0039-1674 - Pressure / support sleeve short 74 / 66 mm dia. 1x KL-0039-1676 - Pressure / support sleeve short 76 / 68 mm dia. 1x KL-0039-1678 - Pressure / support sleeve short 78 / 70 mm dia. 1x KL-0039-1680 - Pressure / support sleeve short 80 / 72 mm dia. 1x KL-0039-1682 - Pressure / support sleeve short 82 / 74 mm dia. 1x KL-0039-1684 - Pressure / support sleeve short 84 / 76 mm dia. 1x KL-0039-1686 - Pressure / support sleeve short 86 / 78 mm dia. 1x KL-0039-1688 - Pressure / support sleeve short 88 / 80 mm dia. 1x KL-0039-1690 - Pressure / support sleeve short 90 / 82 mm dia. 1x KL-4999-1312 - Foam insert
- Drive type
- hydraulic mechanical
- Inner-Ø, sleeve (min.) [mm]
- 22 mm
- inner-Ø, sleeve (max.) [mm]
- 82 mm
- Outer-Ø, sleeve (min.) [mm]
- 30 mm
- Outer-Ø, sleeve (max.) [mm]
- 90 mm
- Diameter gradation [mm]
- 2 mm
- Sleeve length
- 45 mm
- Drive type
- hydraulic mechanical
- Inner-Ø, sleeve (min.) [mm]
- 22 mm
- inner-Ø, sleeve (max.) [mm]
- 82 mm
- Outer-Ø, sleeve (min.) [mm]
- 30 mm
- Outer-Ø, sleeve (max.) [mm]
- 90 mm
- Sleeve length
- 45 mm
- Diameter gradation [mm]
- 2 mm
