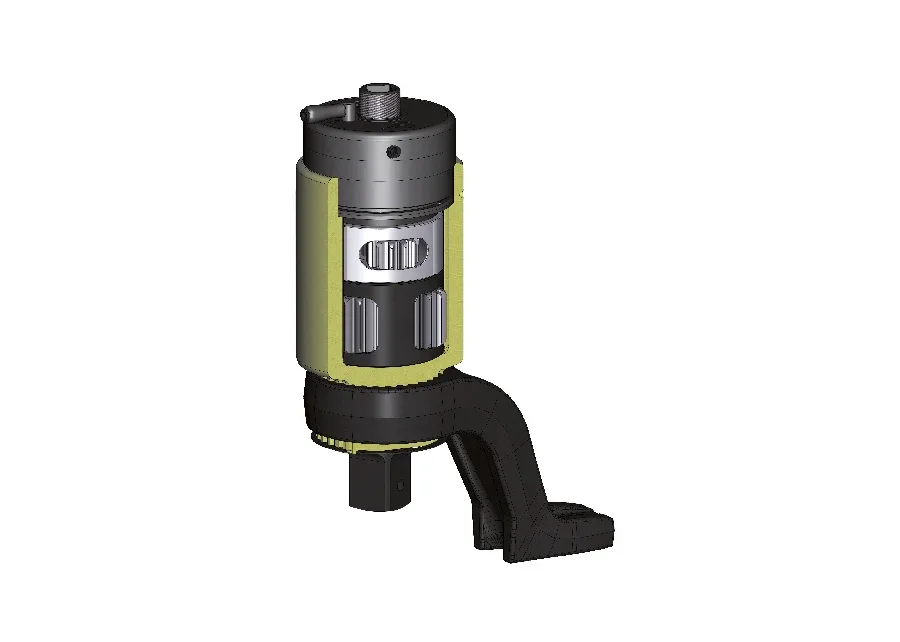

GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, detail image no. 2
GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, detail image no. 3
GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, catalogue image no. 4
GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, catalogue image no. 3
GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, detail image no. 1
GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, detail image no. 2
GEDORE DREMOPLUS ALU torque multiplier 4000 Nm / 2930 lbf·ft, detail image no. 3

DVV-40Z Torque Multiplier DREMOPLUS ALU 4000 Nm

No. DVV-40Z
Code 2653087
EAN 4010886934296
Variant
  • Drive socket, square: 1/2"
  • Maximum input torque: 300 Nm
  • Gear ratio: 1:16
  • Maximum output torque: 4.000 Nm
  • Overload protection: "Slipper" slip clutch
  • Output square: 1"
Find a dealer

Technical Data

Drive connector square [inch]
1/2"
Drive mount, square [metric]
12,5 mm
Drive square [inch]
1/2"
Drive square [inch]
1"
Total length [mm]
230 mm
Nominal length [mm]
230 mm
Weight [kg]
7,5 kg
Bill of materials (text)

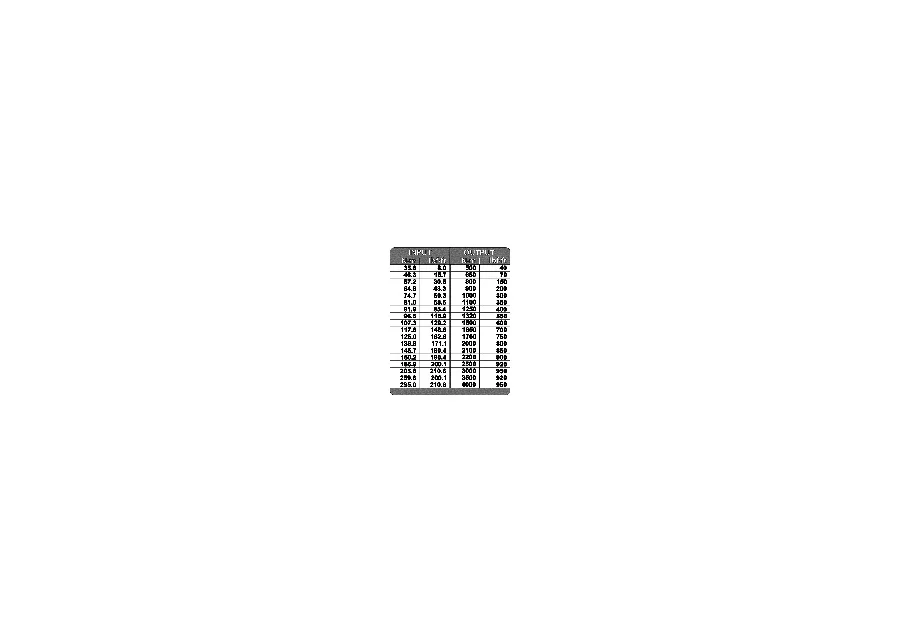

Torque multiplier DREMOPLUS ALU Delivery in stable box on pallet Adjustment table Detailed technical information is available on request
Input torque (max.) [Nm]
300 Nm
Output torque (max.) [Nm]
4.000 Nm
Input torque [lbf·ft]
220 lbf·ft
Output torque (max.) [lbf·ft]
2.950 lbf·ft
Multiplication at the ratio
1:16
Drive square metric [metrisch]
25 mm
Overload protection
"Slipper" Rutschkupplung
Reaction arm mount
gesteckt über Zahnkranz
Version reaction arm
Z-Form, cranked
Distance output square - start reaction arm (min.)
68 mm
Distance output square - end of reaction arm (max)
133 mm
Total height with reaction arm (max.)
256 mm
Total height with reaction arm (min.)
250 mm
Fuse output square drive
Sicherungsring und -stift
Fuse for drive square
Stiftsicherung
Total height without reaction arm
212 mm
Total width without reaction arm
88 mm
