KL-0680-28 Engine timing tool set (Ford, PSA 1.4-2.4 HDI/TDDI/TDCI/TDI)
No.
KL-0680-28 K
Code
2248794
EAN
4046459102304
- Overall width: 295 mm
- Overall height: 106 mm
- Overall length: 395 mm
- Set contents: 29 pieces
Technical Data
- Storage
- Case
- Total length [mm]
- 395 mm
- Total width [mm]
- 295 mm
- Total height [mm]
- 106 mm
- Weight [kg]
- 2,5 kg
- for motor type
- Diesel
- Suitable for motor
- VW-Audi 1.6 TDI Ford 1.8 TDI Ford 1.8 TDDI Ford 1.8 TDCI PSA 1.8 TDI PSA 1.8 TDDI PSA 1.8 TDCI Ford 2.0 16V TDDI Ford 2.0 16V TDCI PSA 2.0 16V TDDI PSA 2.0 16V TDCI PSA 2.4 16V TDDI PSA 2.4 16V TDCI Ford 2.4 16V TDDI Ford 2.4 16V TDCI Ford 1.4 TDCI Ford 1.6 TDCI PSA 1.4 HDi PSA 1.6 HDi
- suitable for vehicle model
- Ford Escort
- Suitability
- Citroen Fiat Ford Jaguar Land Rover Mazda Peugeot PSA Volvo
- OEM
- 23-019|23-020|23-029|303-193|303-367|303-376|303-376 B|303-393|303-393 A|303-393-01|303-393-02|303-465|303-507|303-574|303-620|303-675|303-681|303-681-01|303-698|303-732|303-734|303-735|303-748|310-018|310-019|310-033|49 JE01 050|21-260|49 JE01 054|49 JE01 061|21-263|49 JE01 063|49 JE02 018|49 JE02 020|49 JE02 021|49 JE02 024|49 JE02 061|49 N010 101|49 UN30 3376|995-208|303-235|21-104|21-123|21-162|JE01 054|21-162 B|JE01 061|21-163|21-168|21-168 A|21-210|21-234|21-251|21-259|21-262
- Motorcodes
- Land Rover: 224DT. Citroën/Peugeot/PSA: 4AB, 4BA, 4BB, 4BC, 4CA, 4CB, 4CC, 4DA, 4EA, 4EB, 4EC, 4ED, 4FA, 4FB, 4FC, 4FD, 4GA, 4GB, 4GC, 4GD, 4GE, 4GF, 4HA, 4HB, 4HC, 4HD, 8HP, 8HR, 8HS, 8HT, 8HV, 8HW, 8HX, 8HY, 8HZ, 9HF, 9HH, 9HJ, 9HL, 9HM, 9HN, 9HP, 9HR, 9HS, 9HT, 9HU, 9HV, 9HW, 9HX, 9HY, 9HZ, DV4TD, DV4TED, DV4TED4, DV6ATED4, DV6AUTED4, DV6BTED4, DV6BUTED4, DV6C, DV6DTED, DV6DU, DV6ETED, DV6TED4, DV6TED4B, DV6TED4BU, DV6UC, DV6UTED4. Ford/Mazda: ABFA, ALDA, AOBA, AOBC, AODA, AODB, AODE, AOWA, AOWB, AZBA, AZBC, ATWA, BG, BHDA, BHDB, BHPA, BP, C9DA, C9DB, C9DC, CDBB, CGBA, CGBB, CJBA, CJBB, CSDA, CSDB, D2FA, D2FB, D3FA, D4FA, D5BA, D6BA, DOFA, DV4C, E5FA, E5FC, E5SA, E5SB, EDBA, EDBC, EDBB, EDBD, EDDB, EDDC, EDDD, EDDF, EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL, EYPA, EYPC, F3FA, F4FA, F6JA, F6JB, F6JC, F6JD, F8JA, F8JB, F9DA, F9DB, FE, FFBA, FFDA, FFWA, FIFA, FMBA, FMBB, FP, FS, FUJA, FUJB, FXFA, FXJA, FXJB, FYJA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, G8DA, G8DB, G8DD, GPDA, GZ, GZFA, GZFB, GZFC, H9FA, H9FB, HCPA, HCPB, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, HJBA, HJBB, HJBC, HJBE, HMDA, HXDA, HXJA, HXJB, IQDA, IQDB, IQDB, IXDA, JQDA, JQDB, JTBA, JTBB, JTDA, JTDB, JXFA, KGBA, KHBA, KKDA, KKDB, KL, KLBA, KNBA, L1L, L1N/Q, L3, L5, L8, LF, LPBA, MZ-CD 1.6, MZR 1.8, N4JB, N7BA, N7BB, NGB, NGC, NGD, P7PA, P8FA, P9PA, P9PB, PHFA, PNBA, PNDA, Q4BA, Q7DA, QJBA, QJBB, QJBC, QJBD, QQDA, QQDB, QQDC, QVFA, QWFA, QXBA, QXBB, QXWA, QXWB, QYBA, QYWA, R2PA, R3PA, RFD, RFK, RFS, RHBA, RKF, RKH, RKJ, RKK, RTE, RTF, RTH, RTJ, RTJA, RTJB, RTK, RVA, RWPA, RWPC, SAFA, SEBA, SEWA, SIDA, SNJA, SNJB, SPJA, SPJC, STJA, STJB, SYDA, T1BA, T1BB, T1BC, T1DA, T1DB, TBBA, TBBB, TBWA, TBWB, TNBA, TXBA, TXDA, TXDA, TXDB, TXDB, TXWA, TYBA, TYDA, TYWA, TZJA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA, Y6, YF, ZVSA. Volvo: D4162T, D4164T, D4204T.

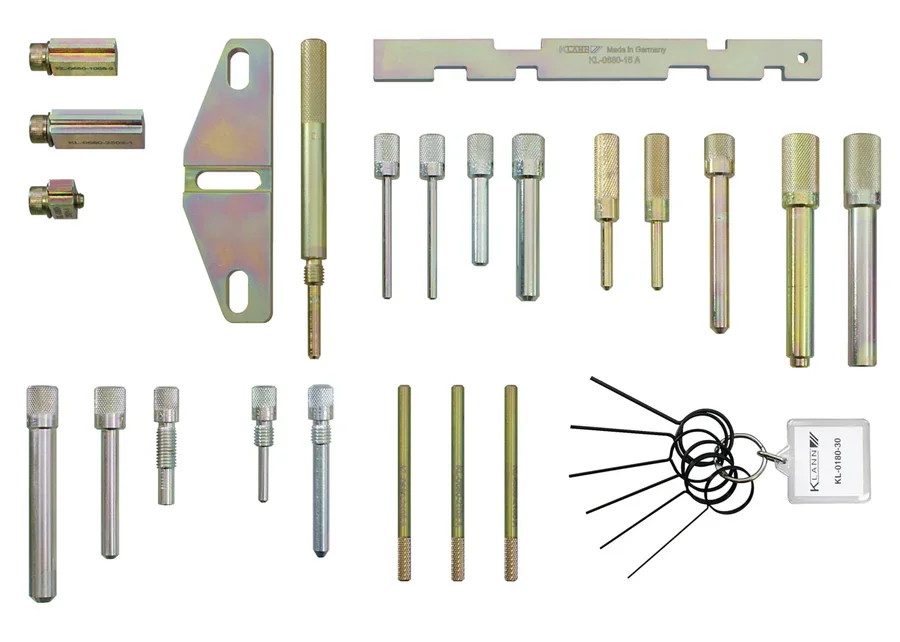

- Bill of materials (text)
- 1x KL-0180-30 B - Locking pin kit 0,8 mm - 2,6 mm 1x KL-0680-10 - Locking mandrel with a diameter of 6 mm, for crankshaft 1x KL-0680-1058 A - Holding device with adapter 1.6, 1.8 diesel 1x KL-0680-11 A - Locking mandrel with a diameter of 8.3 mm, for crankshaft 1x KL-0680-12 A - Locking mandrel with a diameter of 9.5 mm, for injection pump 1x KL-0680-13 A - Locking mandrel with a diameter of 12.9 mm, for flywheel 1x KL-0680-14 A - Locking mandrel with a diameter of 6 mm, for camshaft and injection pump (2 pieces) 1x KL-0680-15 A - Feeler gauge for camshafts 1x KL-0680-16 A - Locking mandrel with a diameter of 7.9 mm, for crankshaft 1x KL-0680-17 - Locking mandrel with a diameter of 5 mm, for crankshaft 1x KL-0680-18 - Locking mandrel with a diameter of 7.95 mm for crankshaft 1x KL-0680-2101 A - Locking mandrel with a diameter of 14 mm, for flywheel 1x KL-0680-2102 A - Locking mandrel with a diameter 14 / 10 mm, for flywheel 1x KL-0680-2103 A - Locking mandrel with a diameter of 6 mm, for camshafts and injection pump (3 pieces) 1x KL-0680-2201 A - Locking mandrel with a diameter of 11 mm, for flywheel 1x KL-0680-2202 A - Locking mandrel with a diameter of 4.5 mm, for crankshaft and injection pump (2 pieces) 1x KL-0680-2203 B - Locking mandrel with a diameter of 8 mm, for camshaft 1x KL-0680-2501 A - Adapter 2.0 TDCi for KL-0680-1058 A 1x KL-0680-2502 A - Adapter 1.6 Ti-VCT for KL-0680-1058 A 1x KL-0680-2890 - Plastic case
