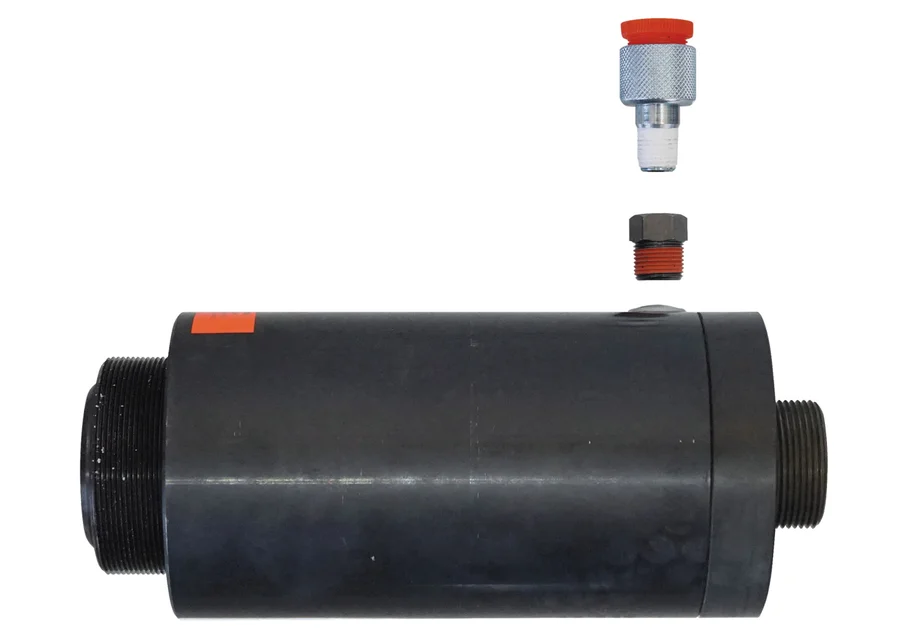

KL-0040-2800 Hydraulic Cylinder, 28 t
No.
KL-0040-2800
Code
2016893
EAN
4046459063780
- Pressure-side connection thread: 2 3/4"-16 UN
- Stroke: 50 mm
- Permissible force (max.): 285 kN (28 t)
- Oil pressure: 700 bar
- Oil volume (max.): 216 cm³
- Hydraulic coupling connection thread: 3/8" NPT
- Pull-side connection thread: M42 × 2
- Drive type: hydraulic
- Internal thread: M24
- Cylinder diameter: 99 mm
Technical Data
- Weight [kg]
- 10,5 kg
- Required accessories
- KL-0215-35 M28 - Hydraulic Pump
- Suitability
- universal
- Drive type
- hydraulic
- Permissible force (max.)
- 285 kN (28 t)
- Oil pressure (max.)
- 700 bar
- Stroke
- 50 mm
- Connection thread for hydraulic coupling
- 3/8" NPT
- Connection thread on the pull side
- M42x2
- Connection thread on the pressure side
- 2 3/4" - 16 UN
- Cylinder diameter
- 99 mm
- Piston surface
- 40,6 cm2
- Oil volume (max.)
- 216 cm3
- Cylinder body length
- 235-285 mm
- Internal thread
- M24
- Drive type
- hydraulic
- Permissible force (max.)
- 285 kN (28 t)
- Oil pressure (max.)
- 700 bar
- Stroke
- 50 mm
- Connection thread for hydraulic coupling
- 3/8" NPT
- Connection thread on the pull side
- M42x2
- Connection thread on the pressure side
- 2 3/4" - 16 UN
- Oil volume (max.)
- 216 cm3
- Cylinder diameter
- 99 mm
- Piston surface
- 40,6 cm2
- Internal thread
- M24
- Cylinder body length
- 235-285 mm
- Drive type
- hydraulic
- Permissible force (max.)
- 285 kN (28 t)
- Oil pressure (max.)
- 700 bar
- Stroke
- 50 mm
- Connection thread for hydraulic coupling
- 3/8" NPT
- Connection thread on the pull side
- M42x2
- Connection thread on the pressure side
- 2 3/4" - 16 UN
- Oil volume (max.)
- 216 cm3
- Cylinder diameter
- 99 mm
- Piston surface
- 40,6 cm2
- Cylinder body length
- 235-285 mm
- Internal thread
- M24
