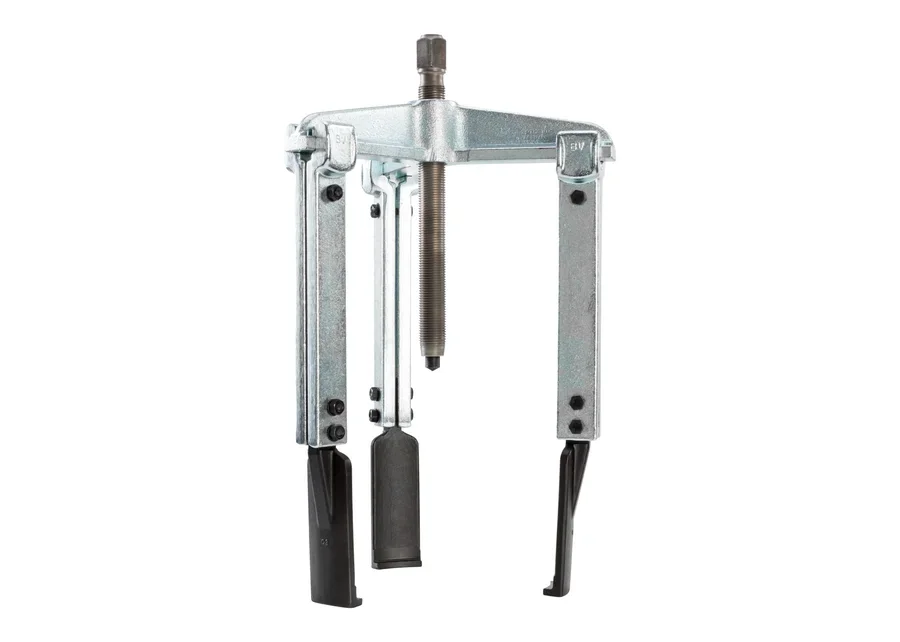

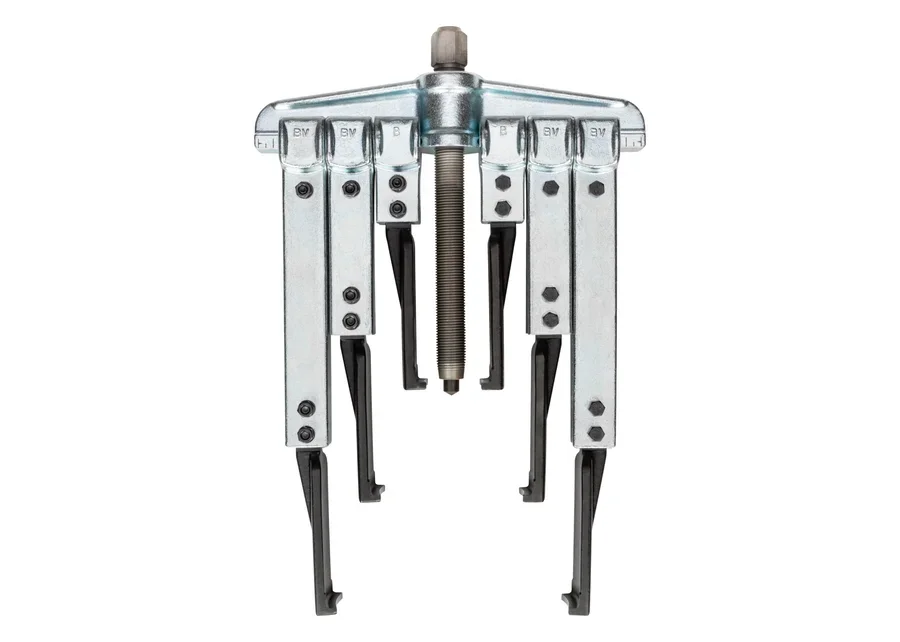

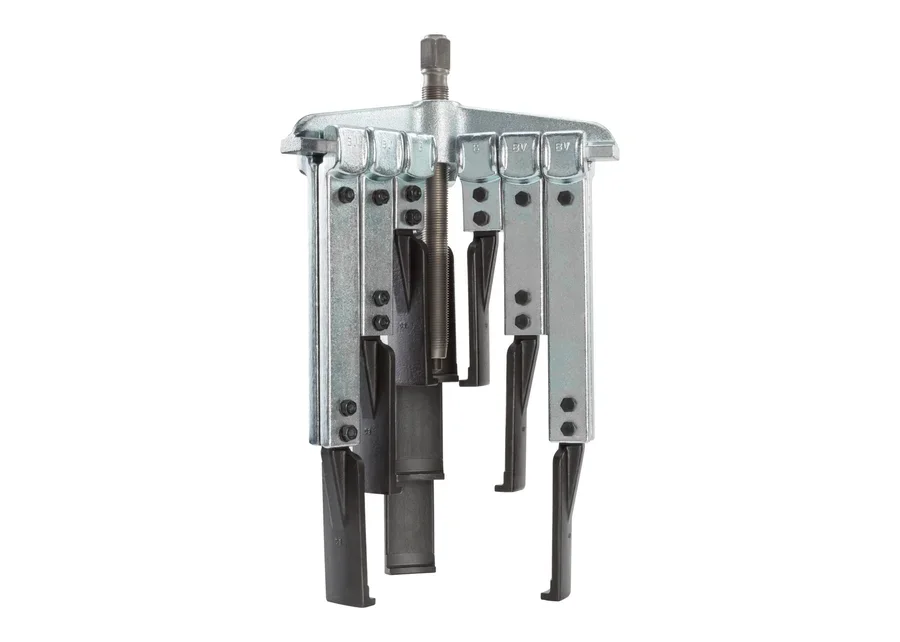

1.07/K-2 Puller set with 9 hooks, 200x150/220/300 mm
No.
1.07/K-2
Code
1676008
EAN
4036976112436
- Pulling force: 5 t
- Spindle thread size: G 1/2 × 210
- Width across flats: 22 mm
- Usable clamping depth: 150 / 220 / 300 mm
- Usable hook-foot depth: 7 mm
- Hook-foot thickness at tip: 5 mm

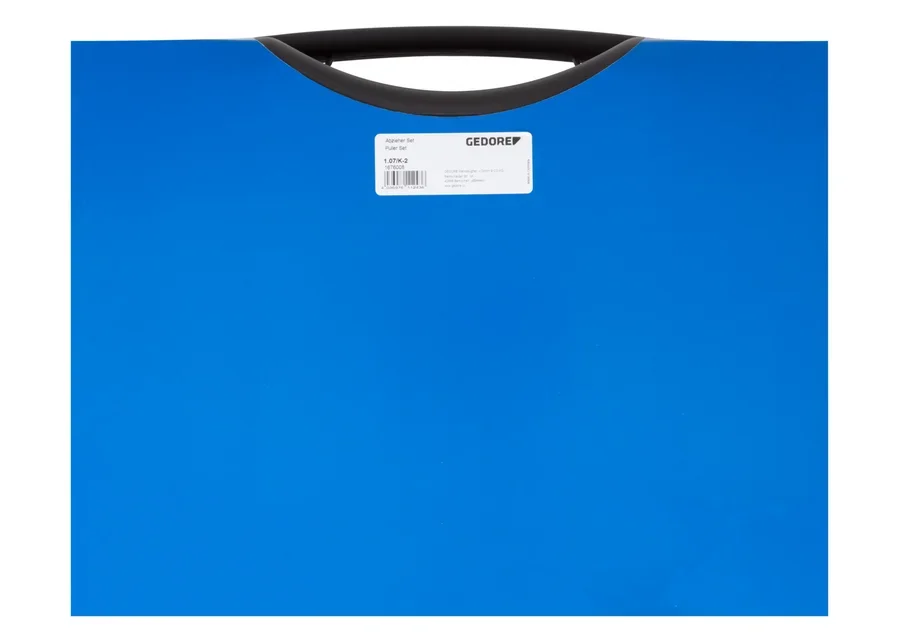

- With plastic case
- Weight: 13,5 kg
- 10-piece
Technical Data
- Width across flats
- 22 mm
- Weight [kg]
- 13,5 kg
- Version
- with plastic case
- Bill of materials (text)

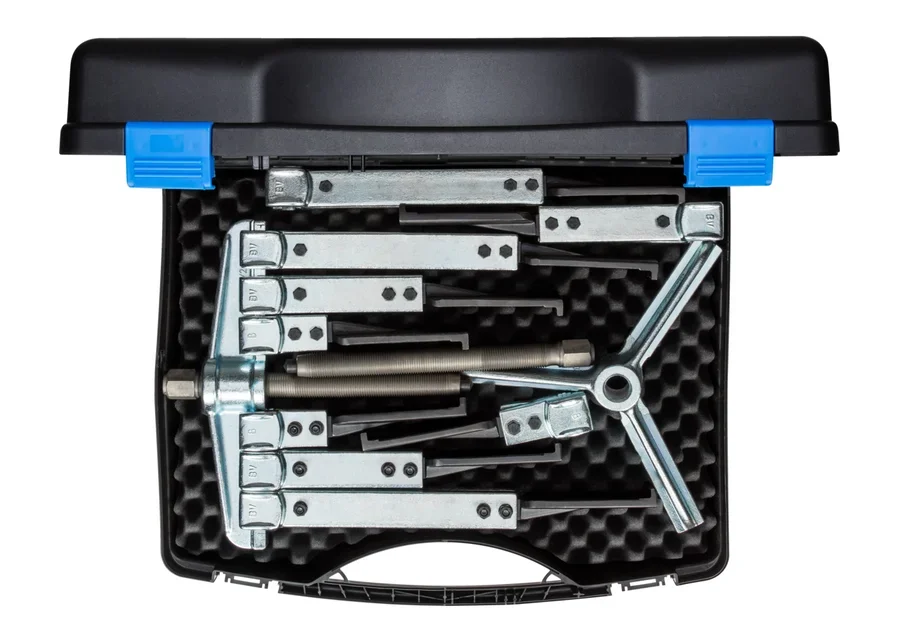

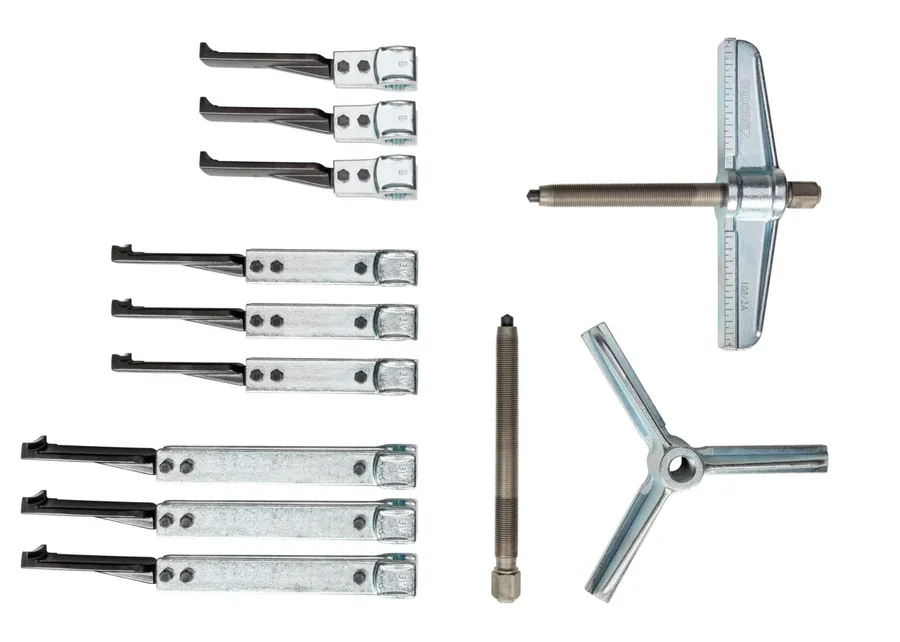

- 107/2A03 Cross beam 3-arm 260 mm 106/2A03 Traverse 2-arm 260 mm 106/B-150-S Pull-off hook slim 150 mm (3x) 106/S220 Pull-off hook slim 220 mm (3x) 106/B-300-S Pull-off hook slim 300 mm (3x) 1.2106210 Spindle 22, G 1/2", 210 mm (2x) 107/399 Plastic case with foam inlay for 1.07/K-2
- Clamping width (max.) external pulling [mm]
- 200 mm
- Usable clamping reach
- 150 mm 220 mm 300 mm
- Tractive force (max.) [t]
- 5 t
- Spindle thread size
- G 1/2"x210 mm
- Usable depth of hooked foot d2 [mm]
- 7 mm
- Hydraulic spindle optional
- 1.06/HSP1
- Width of hooked foot [mm]
- 40 mm
- Thickness of hooked foot at tip [mm]
- 5,0 mm
